Product Details:
Payment & Shipping Terms:
|
| Speed: | 1500rpm Or 1800rpm | Frequency: | 50 / 60HZ |
|---|---|---|---|
| Rated Current: | 18-1080A | Rated Voltage: | 110V/220V/230V/240V/380V |
| Rated Power: | 10-1000kw | Output Type: | AC Single/Three Phase |
| Product Name: | Gas Generator,200kw Natural Gas Power Generator For Sale,Biogas Generator Set | Warranty: | 12 Months/1000 H |
| Alternator: | 100% Copper Wire | Fuel: | Nature Gas/bio Gas/lgp/methane,Natutal Gas/Biogas/LPG |
| Color: | Customized | Fuel Type: | Natural Gas |
| Type: | LPG/Bio/Natural Gas Generator | Engine Type: | In Line,4-strock |
| Control Panel: | Smartgen/Deepsea | Engine: | Natural Gas/Biogas Engine |
| Keywords: | CE Certificate Generator | ||
| High Light: | Cummins Natural Gas Generator Set,Natural Gas Generator Set 2200kW |
||

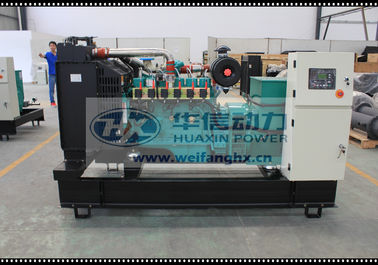

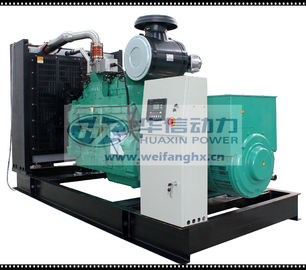

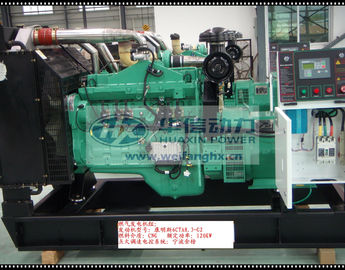

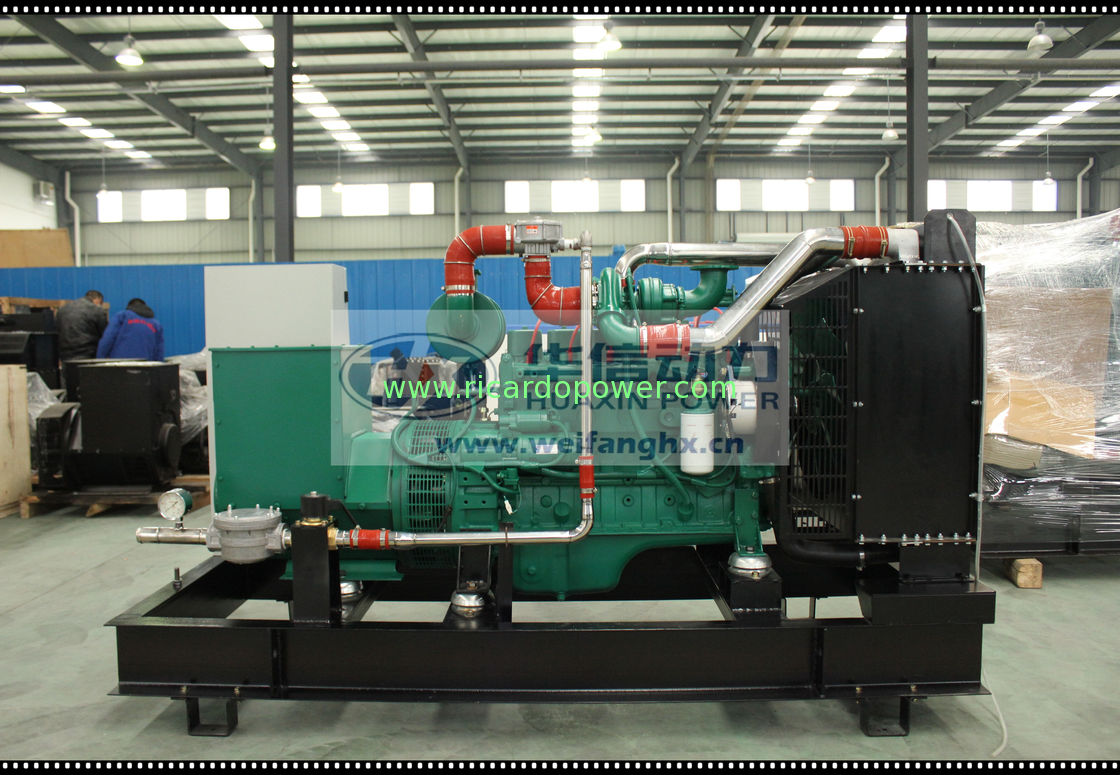

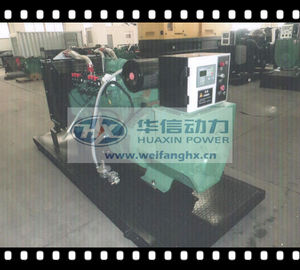

Cummins Natural Gas Generator from 20kW to 2200kW,
Applied gas:
Natural Gas, Biogas, LPG, Landfill gas, Oil gas, Syngas, Coal mine gas
Acceptable fuel gas pressure: 5~12 kPa CH4 content: for natural gas ≥85% CH4 content:for biogas ≥55%
Gas heat value ≥5500 kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value <5500 kcal/Nm3, it will lower the power efficiency.
Gas doesn`t include free water or free materials (the size of impurities should be less than 5μm.)
H2S content ≤200 mg/Nm3,NH3 content ≤20 mg/Nm3, Impurities content ≤30 mg/Nm3;size ≤5 μm,Water content ≤40 g/Nm3, no free water.
Standard Scope of Supply:
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by Cummins with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
Accessories list
1. Maintenance Operation manual
2. Quality certificate, Gen-sets ex-factory testing report
Optional:
1. Sound-proof canopy 2. CHP system 3. Grid parallel system 4. Remote radiator 5. Auto oil filling system 6. Water heater 7. Oil heater 8. Gas leaking detector 9. Flame detector 10. Gas scrubber
