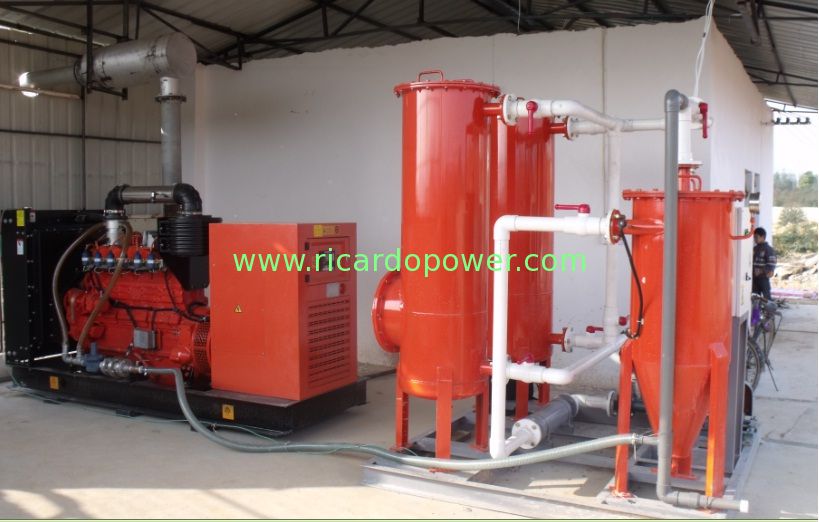

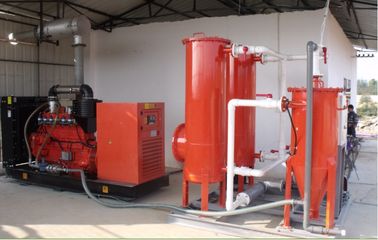

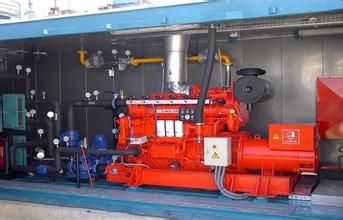

Biogas Biomass CNG LPG Gas Generator Set

Biogas Biomass CNG LPG Gas Generator Set

Applied gas:

Natural Gas, Biogas, LPG, Landfill gas, Oil gas, Syngas, Coal mine gas

Acceptable fuel gas pressure: 5~12 kPa CH4 content: for natural gas ≥85% CH4 content:for biogas ≥55%

Gas heat value ≥5500 kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value <5500 kcal/Nm3, it will lower the power efficiency.

Gas doesn`t include free water or free materials (the size of impurities should be less than 5μm.)

H2S content ≤200 mg/Nm3,NH3 content ≤20 mg/Nm3, Impurities content ≤30 mg/Nm3; size ≤5 μm,Water content ≤40 g/Nm3, no free water.

CNG (Compressed Natural Gas) generators offer several advantages compared to other types of generators. Here are some of the main advantages of using CNG generators:

Lower Emissions: CNG is a cleaner-burning fuel compared to diesel or gasoline. When burned, natural gas produces lower levels of carbon dioxide (CO2), nitrogen oxides (NOx), sulfur dioxide (SO2), particulate matter, and other harmful pollutants. This makes CNG generators a more environmentally friendly choice, contributing to improved air quality and reduced greenhouse gas emissions.

Cost Savings: Natural gas is generally more affordable than diesel or gasoline, resulting in cost savings for the operation of CNG generators. Additionally, the maintenance requirements for CNG generators are often lower compared to diesel generators, leading to reduced maintenance and repair costs over time.

Abundant Fuel Supply: Natural gas is a widely available resource in many regions around the world. It can be sourced from pipelines or stored in tanks, providing a reliable and continuous fuel supply for CNG generators. The availability of natural gas infrastructure makes it easier to access and distribute the fuel, ensuring a steady power source.

Quieter Operation: CNG generators tend to operate at lower noise levels compared to diesel generators. The combustion of natural gas produces less noise, resulting in quieter operation, which can be beneficial in noise-sensitive environments such as residential areas or commercial buildings.

Longer Engine Life: Natural gas combustion is generally cleaner and produces fewer deposits and contaminants compared to diesel or gasoline combustion. This can contribute to extended engine life and reduced wear on engine components, resulting in increased reliability and durability of CNG generators.

Fuel Storage Safety: Compared to liquid fuels like gasoline or diesel, CNG is stored in a gaseous state, which reduces the risk of spills, leaks, and fire hazards associated with liquid fuel storage. CNG storage tanks are designed to be safe and secure, minimizing the risk of accidents and environmental contamination.

Compliance with Emission Regulations: CNG generators can help organizations meet regulatory requirements and emissions standards. In areas with strict emissions regulations or environmentally sensitive zones, CNG generators can be a preferred choice due to their cleaner emissions profile.

It's important to note that the advantages of CNG generators may vary depending on specific factors such as fuel availability, local regulations, and individual application requirements. It's recommended to assess the specific needs and considerations of a project or application when evaluating the advantages of CNG generators.

Optional:

1. Sound-proof canopy 2. CHP system 3. Grid parallel system 4. Remote radiator 5. Auto oil filling system 6. Water heater 7. Oil heater 8. Gas leaking detector 9. Flame detector 10. Gas scrubber
