Weifang Huaxin Diesel Engine Co.,Ltd.
Home ProductsNatural Gas Generator

Cummins Natural Gas Generator from 20kW to 2200kW

China Weifang Huaxin Diesel Engine Co.,Ltd. certification
China Weifang Huaxin Diesel Engine Co.,Ltd. certification
Hello Charley! Hope you are doing well ! We got the spare parts and fixed our engine;everything is ok now! Thanks again for all your help and effort! I will recommend you any others who will need the Ricardo engine parts! Best of luck for you! Kim from Australia

—— Kim Cague

I'm Online Chat Now

Cummins Natural Gas Generator from 20kW to 2200kW

Cummins Natural Gas Generator from 20kW to 2200kW
Cummins Natural Gas Generator from 20kW to 2200kW
video play

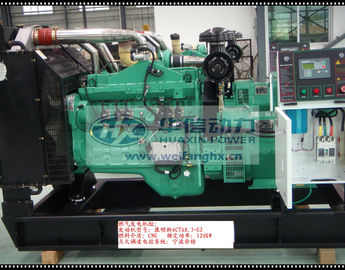

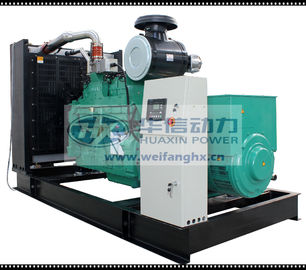

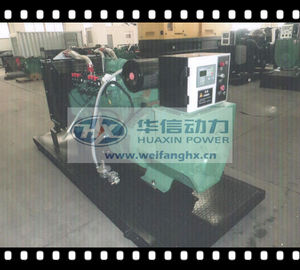

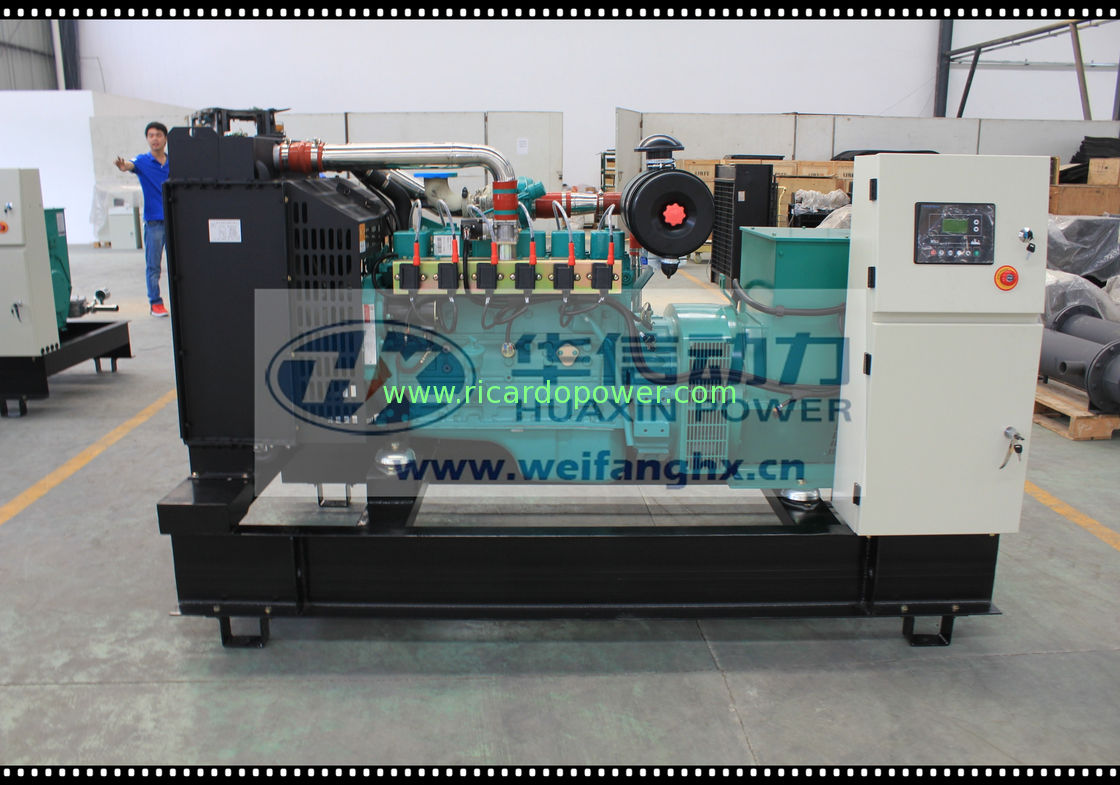

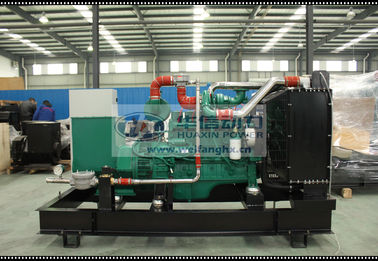

Large Image :  Cummins Natural Gas Generator from 20kW to 2200kW

Product Details:
Place of Origin: China
Brand Name: Huaxin
Certification: CE
Model Number: HX-120GFS
Payment & Shipping Terms:
Price: USD 20000
Packaging Details: In export plywood
Delivery Time: In 10 days after receive the deposit
Payment Terms: T/T
Supply Ability: 50 Units/month
Minimum Order Quantity: 1
Detailed Product Description
High Light:

Natrual gas generator

,

Cummins gas generator

,

Biogas generator

Cummins Natural Gas Generator from 20kW to 2200kW,

Applied gas:

Natural Gas, Biogas, LPG, Landfill gas, Oil gas, Syngas, Coal mine gas

Acceptable fuel gas pressure: 5~12 kPa CH4 content: for natural gas ≥85% CH4 content:for biogas ≥55%

Gas heat value ≥5500 kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value <5500 kcal/Nm3, it will lower the power efficiency.

Gas doesn`t include free water or free materials (the size of impurities should be less than 5μm.)

H2S content ≤200 mg/Nm3,NH3 content ≤20 mg/Nm3, Impurities content ≤30 mg/Nm3;size ≤5 μm,Water content ≤40 g/Nm3, no free water.

Standard Scope of Supply:

1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by Cummins with best quality

2. Brand new brushless France Leroy Somer alternator

3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H

4. Radiator for 40°C/50°C ambient temperature

5. Ignition system adopted USA ALTRONIC

6. Emergency stop mounted

7. Battery,Battery cable and Battery charger

8. Standard tool box

9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )

10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)

Accessories list

1. Maintenance Operation manual

2. Quality certificate, Gen-sets ex-factory testing report

Optional:

1. Sound-proof canopy 2. CHP system 3. Grid parallel system 4. Remote radiator 5. Auto oil filling system 6. Water heater 7. Oil heater 8. Gas leaking detector 9. Flame detector 10. Gas scrubber
