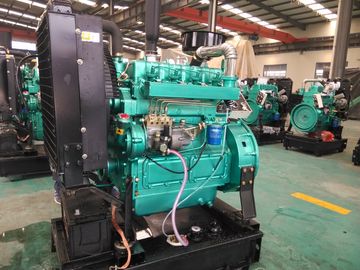

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

Good quality Ricardo diesel engine for sales
Good quality Ricardo diesel engine for sales
I'm Online Chat Now

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

China 1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green supplier
1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green supplier 1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green supplier 1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green supplier 1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green supplier

Large Image :  1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

Product Details:

Place of Origin: Weifang
Brand Name: Huaxin
Certification: CE
Model Number: HX

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable by model
Packaging Details: In export plywood case
Delivery Time: In 7 days after receive the deposit.
Payment Terms: T/T
Supply Ability: 1000Units/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Speed: 1500r/min Or 1800r/min Power: 42KW
Cool Type: Water Cooled Color: Green
Displacement: 3.61 Fuel Consumption: 232g/kw.h
Bore*Stroke: 100*115 Cylinder Number: 4

Why choose us?

a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.

b, Quality-Control.

Raw Material Purchase Inspection.

Engine assemble inspection.

Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.

Before pack-Inspection.

c. Spare parts available.

d, Engine manual instruction and parts catalog together with engine.

e,All-life service after sale.



Engine Model 295D 2100D 495D 495ZD K4100D K4100ZD K4102D K4102ZD
Type 4 Strokes, Water Cooling, Inline, Swirl Combustion Chamber
Rated Power/Speed(kw/rpm) 13.5/1500 15/1500 26.5/1500 36/1500 30.1/1500 41/1500 33/1500 44/1500
16.2/1800 18/1800 31/1800 41/1800 36/1800 47/1800 39/1800 50/1800
Cylinder Number 2   4
Bore*Stroke 95*115 100*115 95*115 100*115 102*115
Total Displacement of Piston(L) 1.63 1.81 3.26 3.61 3.76
Pressure Ratio 17 17 19
Firing Order     1-3-4-2
Air Intake Type Naturally Asp. Naturally Asp. Turbo. Naturally Asp. Turbo. Naturally Asp. Turbo.
Average Effective Pressure(Kpa)     650 930 650 914 702 702
Fuel Consumption(g/kw.h) 265.2 263.8 243.3 239.6 243.3 239.6 243.3 239.6
Oil Consumption(g/kw.h) 2.04 2.04 2.04
Exhaust Temperature(℃) 430 430 470 540 470 540 470 540
Crankshaft ratating Inverse Hour(Facing to the power output end)
Cooling Mode Forced Cooling

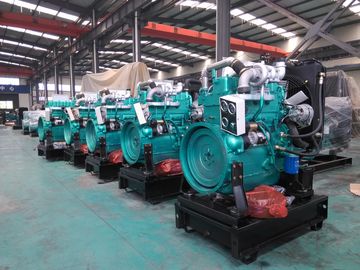

Produce and testing line

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

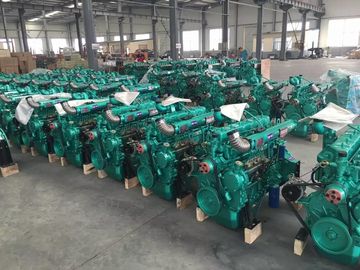

Engine in Stock


1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

Export plywood package



1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green

1500rpm Ricardo diesel engine K4100ZD for prime power 32KW /40KVA diesel genset in color green
