Product Details:
Payment & Shipping Terms:
|
| Speed: | 1500r/min Or 1800r/min | Power: | 56KW |
|---|---|---|---|
| Cool Type: | Water Cooled | Color: | Green |
| Displacement: | 3.61 | Fuel Consumption: | 232g/kw.h |
| Bore*Stroke: | 100*115 | Cylinder Number: | 4 |
Why choose us?
a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.
b, Quality-Control.
Raw Material Purchase Inspection.
Engine assemble inspection.
Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.
Before pack-Inspection.
c. Spare parts available.
d, Engine manual instruction and parts catalog together with engine.
e,All-life service after sale.
| Engine Model | R4105D | R4105AD | R4105ZD | R4105AZD | R4105AZLD | ||
| Type | 4 Strokes, Water Cooling, Inline, Direct Injection Combustion Chamber | ||||||
| Rated Power/Speed(kw/rpm) | 38/1500 | 42/1500 | 56/1500 | 60/1500 | 70/1500 | ||
| 45/1800 | 50/1800 | 65/1800 | 72/1800 | 84/1800 | |||
| Cylinder Number | 4 | ||||||
| Bore*Stroke | 105*125 | 105*130 | 105*125 | 105*130 | 105*130 | ||
| Total Displacement of Piston(L) | 4.33 | 4.5 | 4.33 | 4.5 | 4.5 | ||
| Pressure Ratio | 17 | ||||||
| Firing Order | 1-3-4-2 | ||||||
| Air Intake Type | Naturally Asp. | Turbo. | Naturally Asp. | Turbo. | Naturally Asp. | ||
| Average Effective Pressure(Kpa) | 776 | 776 | 1034 | 1034 | 1034 | ||
| Fuel Consumption(g/kw.h) | 232 | 232 | 231 | 231 | 231 | ||
| Oil Consumption(g/kw.h) | 1.63 | ||||||
| Exhaust Temperature(℃) | 600 | ||||||
| Crankshaft ratating) | Inverse Hour(Facing to the power output end) | ||||||
| Cooling Mode | Forced Cooling | ||||||
Produce and testing line

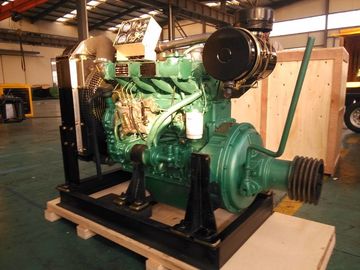

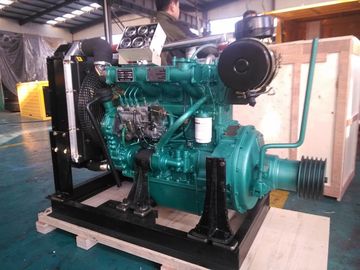

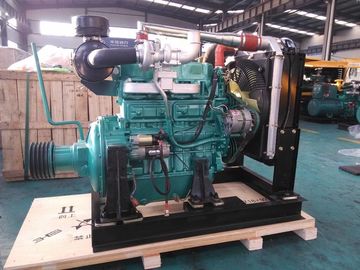

Engine in Stock
Export plywood package
