3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red

Large Image : 3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red

Product Details:

Place of Origin:	Weifang
Brand Name:	Aoling
Certification:	CE
Model Number:	6BD-ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable by model
Packaging Details:	In export plywood
Delivery Time:	In 7 days after receive the deposit.
Payment Terms:	T/T
Supply Ability:	500Units/month
Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Speed:	3000rpm	Power:	150KW
Cool Type:	Water Cooled	Color:	Red
Displacement:	5.785	Fuel Consumption:	228g/kw.h
Bore*Stroke:	102*118	Cylinder Number:	6
Compression Ratio:	17.5:1	Weight:	570Kg
Speed Regulation Method:	Mechanical	Oil Capacity:	12L
Cooling Capacity:	12L	Application Of Altitude:	1000m-3500m
Highlight:	3000rpm Diesel Engine Pump , 150KW Diesel Engine Pump

Why choose us?

a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.

b, Quality-Control.

Raw Material Purchase Inspection.

Engine assemble inspection.

Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.

Before pack-Inspection.

c. Spare parts available.

d, Engine manual instruction and parts catalog together with engine.

e,All-life service after sale.

6BD-ZL

Project	Technical parameters
Type	Vertical, vertical, water cooled, four stroke, natural breathing
fuel injection system	Straight line mechanical pump
Air inlet mode	Boost in cold
The number of cylinders	6
Bore stroke (mm)	102*118
Total displacement(L)	5.785
ignition order	1-5-3-6-2-4
Crankshaft rotation direction	Counter clockwise (for the flywheel side)
Compression ratio	17.5:1
Rated speed(r/min)	3000
1 hour power(kW/ r/min)	150
Idle speed (r/min)	750±50
Lowest fuel consumption rate (g/kW.h)	215
Fuel	Light diesel oil GB252
lubricating system	Pressure splash lubrication
Net quality (kg)	575
Dimensions(mm)	10816521093
emission level	European II or European (electronic control ECU)

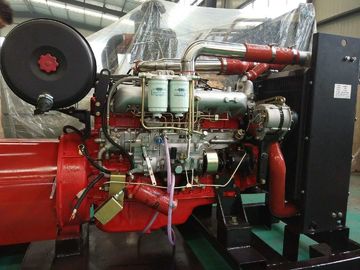

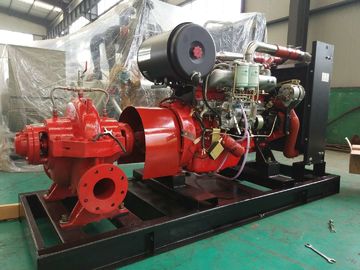

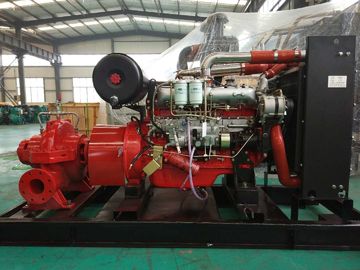

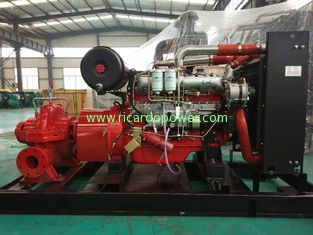

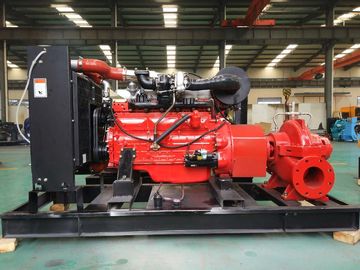

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 0

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 1

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 2

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 3

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 4

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 5

Engine in Stock

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 6

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 8

Export plywood package

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 9

3000rpm 6BD-ZL Diesel Engine Prime Power 150KW For Power Of The Fire Fighting Pump In Red 10
