Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Good quality Ricardo diesel engine for sales
Good quality Ricardo diesel engine for sales
I'm Online Chat Now

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

China Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200 supplier
Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200 supplier Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200 supplier Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200 supplier Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200 supplier Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200 supplier

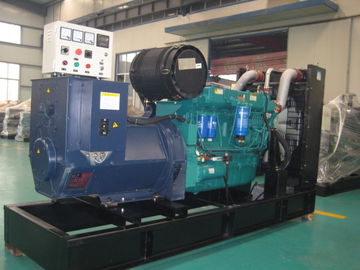

Large Image :  Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Product Details:

Place of Origin: China
Brand Name: WEICHAI
Certification: CE
Model Number: HX-200GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD20000/unit
Packaging Details: Export plywood case
Delivery Time: 5~10 work days
Supply Ability: 200 units per month
Contact Now
Detailed Product Description
Prime Power: 200KW/250KVA Standby Power: 220KW/275KVA
Current: 400A Frequency: 50/60HZ
Voltage: 400/230V 220/110V Color: Optional
Package: Export Plywood Case ATS: Optional

We privides a full line of new brand and high quality diesel generator. 300KVA Diesel Generator powered by Weichai, Cummins, Perkins, Deutz, Lovol, Yuchai or Ricardo engine. Weichai powered electric diesel generator set with reliable performance and high technology. Each and every equipement is strictly tested before delivery .



gensets model(electric dynamo generator) HX-200GF
Engine WP10D238E200
Power 250kva/200kw
Rated Voltage 400/230V
Rated frequency(HZ) 50HZ
Rated Speed 1500rpm
Power Factor(COS) 0.8(lagging)
Dimensions of open type(mm) (L×W×H) 2800*1100*1600
Dimensions of sient type(mm) (L×W×H) 3200*1200*2000
Gross weight of open type (kg) 2000
Gross weight of silent type(kg) 2100



Genset Model Power(KW) Voltage (V) Current(A) Engine Model Size(mm) Weight(Kg)
HX-20GF 20 400/230 36 WP3.9D33E2 1400x660x1000 600
HX-24GF 24 400/230 43.2 WP3.9D33E2 1400x660x1000 600
HX-30GF 30 400/230 54 WP3.9D33E2 1600x660x1000 650
HX-40GF 40 400/230 72 WP4.1D50E2 1700x660x1200 700
HX-50GF 50 400/230 90 WP4.3D61E2 1700x660x1500 750
HX-50GF 50 400/230 90 WP4D66E200 1700x660x1500 750
HX-64GF 64 400/230 115.2 WP4D100E200 2600x720x1650 1050
HX-75GF 75 400/230 135 WP4D100E200 2700x720x1650 1150
HX-100GF 100 400/230 180 WP6D132E200 2700x720x1650 1150
HX-120GF 120 400/230 216 WP6D132E200 2700x900x1700 1250
HX-150GF 150 400/230 270 WP6D152E200 2700x900x1700 1350
HX-150GF 150 400/230 270 WP10D200E200 2700x900x1700 1350
HX-180GF 180 400/230 324 WP10D200E200 2700x900x1700 1500
HX-200GF 200 400/230 360 WP10D238E200 2700x900x1700 1600
HX-250GF 250 400/230 450 WP12D317E200 2700x900x1700 2000
HX-300GF 300 400/230 540 WP13D385E200 2900x1000x1700 2500
HX-320GF 320 400/230 576 WP13D385E200 2900x1000x1700 2500
HX-400GF 400 400/230 720 WHM6160SD518-5 4200x1500x2000 4300
HX-400GF 400 400/230 720 6M26D484E200 4200x1500x2000 4000
HX-500GF 500 400/230 900 WHM6160MD628-5 4200x1500x2000 4500
HX-500GF 500 400/230 900 12M26 4200x1500x2000 4500
HX-600GF 600 400/230 1080 12M26 4300x1500x2000 4600
HX-800GF 800 400/230 1440 12M26D968E200 4500x1800x2000 5000

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Silent canopy

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Controller

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Package

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Spare parts optional

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Installation draft

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Cooperator and certificate

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200

Hot sale Weichai 200KW/250KVA trailer diesel generating set powered by Weichai engine WP10D238E200
