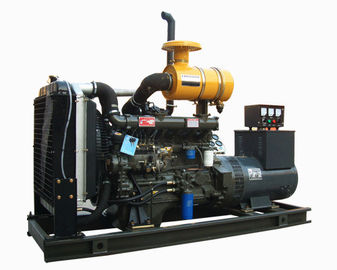

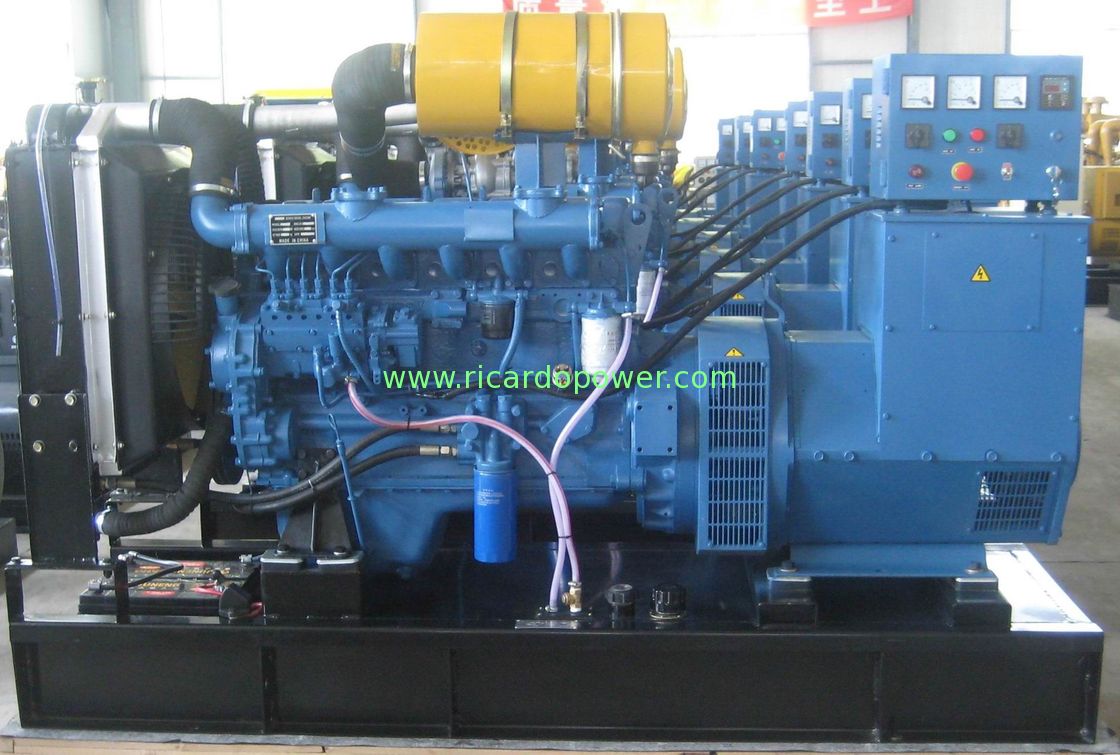

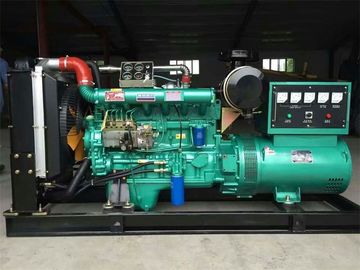

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD

China Weifang Huaxin Diesel Engine Co.,Ltd. certification
China Weifang Huaxin Diesel Engine Co.,Ltd. certification
Hello Charley! Hope you are doing well ! We got the spare parts and fixed our engine;everything is ok now! Thanks again for all your help and effort! I will recommend you any others who will need the Ricardo engine parts! Best of luck for you! Kim from Australia

—— Kim Cague

I'm Online Chat Now

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD
Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD
video play

Large Image :  Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD

Product Details:
Place of Origin: China
Brand Name: Ricardo
Certification: CE
Model Number: HX-80GF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD4000/unit
Packaging Details: Export plywood
Delivery Time: 5~10 work days
Supply Ability: 200 units per month
Detailed Product Description
Prime Power: 80KW/100KVA Standby Power: 88KW/110KVA
Current: 180A Frequency: 50/60HZ
Voltage: 400/230V 220/110V Color: Optional
Package: Export Plywood ATS: Optional

We privides a full line of new brand and high quality diesel generator. 100KVA Diesel Generator powered by Weichai, Cummins, Perkins, Deutz, Lovol, Yuchai or Ricardo engine. Weichai powered electric diesel generator set with reliable performance and high technology. Each and every equipement is strictly tested before delivery .



gensets model(electric dynamo generator) HX-100GF
Engine R6105AZLD
Power 100kva/80kw
Rated Voltage 400/230V
Rated frequency(HZ) 50HZ
Rated Speed 1500rpm
Power Factor(COS) 0.8(lagging)
Dimensions of open type(mm) (L×W×H) 2200*800*1400
Dimensions of sient type(mm) (L×W×H) 2500*1000*1700
Gross weight of open type (kg) 1000
Gross weight of silent type(kg) 1200
Model Prime Power(KW) Standby Power(KW) Current(A) Engine Model Displacement (L) Fuel Consumption(g/kw.h) Size(L*W*H)mm Weight (Kg)
HX-20GF 20 22 36 ZH490D 2.5 251 1600×650×1200 500
HX-24GF 24 26.4 43.2 K4100D 3.61 248 1700×700×1320 550
HX-30GF 26 30 54 K4100D 3.61 248 1700×700×1320 580
28 30 54 K4102D 3.61 244 1700×700×1320 600
30 32 60 K4100ZD 3.61 238 1700×700×1350 650
HX-40GF 36 40 64 K4100ZD 3.61 238 1700×700×1400 700
40 44 80 HX4105ZD 3.95 235 1700×750×1500 720
HX-50GF 40 50 90 HX4105ZD 3.85 235 1700×750×1500 750
44 50 90 R4105ZD 4.33 232 1800×800×1600 800
HX-60GF 55 60 108 R4110ZLD 4.85 230 2000×800×1600 900
60 66 72 R6105ZD 6.49 232 2200×850×1600 1000
HX-75GF 64 75 135 R6105AZD 6.49 232 2200×850×1600 1050
HX-100GF 88 100 180 R6105AZLD 6.75 232 2200×850×1600 1100
100 110 200 R6105IZLD 7.01 232 2200×850×1600 1200
HX-120GF 110 120 216 R6105IZLD1 7.01 232 2200×850×1600 1250
120 130 234 R6110ZLD 7.35 230 2300×900×1700 1300
HX-150GF 130 150 270 HX6113ZLD 7.522 230 2500×1000×1700 1400
HX-180GF 160 180 324 HX6126ZLD 9.68 220 2700×1000×1900 1500
HX-200GF 180 200 360 HX6126ZLD1 9.68 220 2700×1000×1900 1600
HX-250GF 220 250 450 HX618ZLD 9.68 220 2700×1000×1900 1700
HX-300GF 250 300 540 HX618ZLD1 9.98 220 2700×1000×1900 1750

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 0

Silent canopy

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 1

Controller

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 2

Package

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 3

Spare parts optional

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 4

Installation draft

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 5

Cooperator and certificate

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 6

Hot sale Ricardo 80KW/100KVA diesel generating set powered by Ricardo engine R6105AZLD 7
