| Power: | 640KW /800KVA | Current: | 1150A |
|---|---|---|---|
| Type: | 3 Phase 4 Wire | Voltage: | 400/230 , 220/110 |

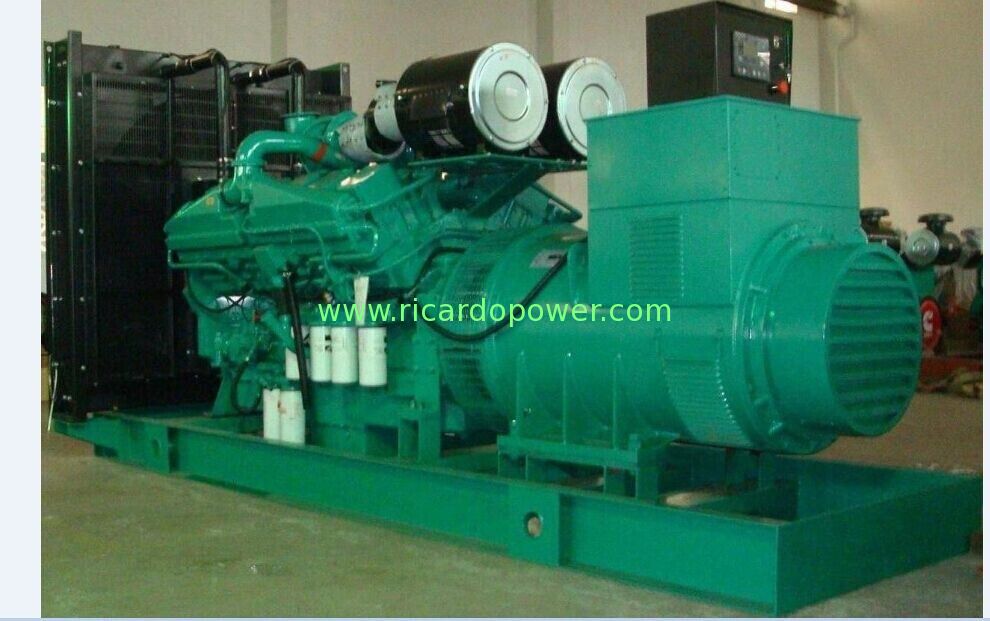

800KVA diesel Generator powered by Cummins
| 1. Delivery time | ||||||||
| Within 20 working days after receiving payment. | ||||||||
| 2. Payment | ||||||||
| 30% deposit and balance before shipment. | ||||||||
| 3. Validity | ||||||||
| 30 days since the date of quotation. | ||||||||
| 4. Warranty | ||||||||
| Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception). | ||||||||
| 5. Criterion | ||||||||
| (1) European Safety Standard: CE Certificate | ||||||||
| (2) ISO9001:2008 Quality Control System | ||||||||
| (3) Cummins OEM Certificate | ||||||||
| (4)Marathon OEM Certificate | ||||||||
| (5)Stamford OEM Certificate | ||||||||
| Section B. Technical Specification | ||||||||
| 1. Specification of genset | ||||||||
| Gensets model | HX-640GF | |||||||
| Prime power | 640KW/800KVA | |||||||
| Rated Voltage | 400/230 | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 5600x2100x2800 | |||||||
| Net Weight(kg) | 7000 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | Cummins | |||||||
| Engine model | KTA38-G2 | |||||||
| Engine power(kw/hp) | 731/980 | |||||||
| Number of Cylinders | 12 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged,and after cooled | |||||||
| Fuel System | PT -STC | |||||||
| Bore×Stroke (mm×mm) | 159 x 159 | |||||||
| Displacement (Liter) | 38 | |||||||
| Compression Ratio | 14.5:1 | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| Total lubrication system capacity (L) | 114 | |||||||
| Fuel Consumption at 100% Load (L/h) | 96 | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Alternator model | LVI634B | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. The components of the generator set | ||||||||

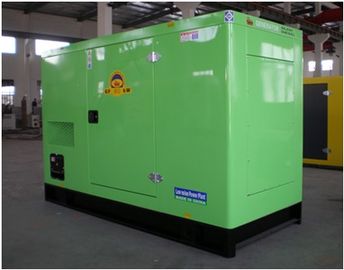

| 1)Cummins engine 2)Stamford alternator 3)Automatic start 4)Soundproof type with base fuel tank | ||||||||
| 5.General Features: | ||||||||
| Cummins Engine | ||||||||
| Radiator 50℃ max, fans are driven by Belt, with safety guard | ||||||||
| 12V charger alternator | ||||||||
| Stamford Alternator | ||||||||
| Absorber | ||||||||
| Dry type air filter, fuel filter, oil filter | ||||||||
| Main line circuit breaker | ||||||||
| Standard control panel | ||||||||
| Ripple flex exhaust pipe, exhaust siphone, flange, muffler | ||||||||
| 12V*2 batteries, rack and cable | ||||||||
| User manual | ||||||||
| 6. Specification of control Panel | ||||||||
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
| The features of controller: | ||||||||
| GU620A is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. |
||||||||
| The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s. |
||||||||
| True RMS measure of voltage and current. | ||||||||
| Multi-Language menu. | ||||||||
| 128 x 64 pixel LCD display. | ||||||||
| 4 analog inputs for kinds of optional sensors that can be used for measuring oil pressure, coolant temperature, fuel level and so on; parameters can be configured by user. |
||||||||
| More outputs of configurable auxiliary control relays. | ||||||||
| More configurable isolated digital inputs. | ||||||||
| Buttons on control panel are used for selecting control modes, starting and stopping the operating procedure, displaying data and modifying the parameters. LED indicators are used for indicating the operation mode of controller and the running status of Genset, and LCD displays each measuring parameter and status. |
||||||||
| Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with PC, fully realizing functions of remote signaling, telemetering and remote control, can read and set the running parameters of controller. |
||||||||
| With GPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB port for remote communication. |
||||||||
| Optional CANbus, read and control the parameters for ECU engine. | ||||||||
| All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain | ||||||||
