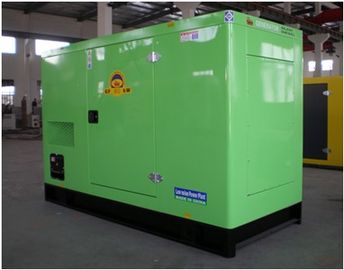

24kw Ricardo Diesel Generator Price
1), Commercial Term,
2), General Specification of 24kw Ricardo Diesel Generator,
a, Engine and Alternator
Engine-Industrial 4 strokes cooled diesel engine complete with air, fuel and oil filters, electric starting and charging equipment, engine protection against oil low water level.
Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034. Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity. All standard voltages are available.
Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45℃,radiator suitable for higher temperature are available. Low water level protection fitted as standard.
Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.
3), Technical Data,
|Generator Model||Prime Power Output||Standby Power||Cummins Engine Model||Stamford Alternator Model|
|Packing Data||Open Type||Silent Type|
a), Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.-60HZ.
b), Prime Power: These Ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12hours.
3), Standby Power: These ratings are applicable for supply continuous electrical power (at variable load) In the event ability power failure.
|Type||water-cooled direct injection|
|Rated Power||30.1kw/41 hp|
|Air Intake type||Turbocharged|
|Mechanical governor rate||≤5%|
|Electronical Governor rate||≤1%|
|Noise Level||≤96 dBA|
|Lube Oil capacity||6.7L|
