20KW Ricardo Diesel Generator Set

Good quality Ricardo diesel engine for sales
Good quality Ricardo diesel engine for sales
I'm Online Chat Now

20KW Ricardo Diesel Generator Set

China 20KW Ricardo Diesel Generator Set supplier
20KW Ricardo Diesel Generator Set supplier 20KW Ricardo Diesel Generator Set supplier 20KW Ricardo Diesel Generator Set supplier

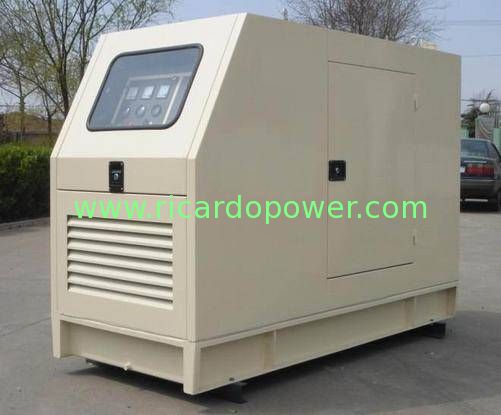

Large Image :  20KW Ricardo Diesel Generator Set

Product Details:

Place of Origin: China
Brand Name: Huaxin
Certification: CE
Model Number: HX-20GF

Payment & Shipping Terms:

Price: USD 1750
Packaging Details: Export plywood case
Delivery Time: In 7 days after receive the deposit
Payment Terms: T/T
Supply Ability: 500 units per month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

20kw Ricardo Diesel Generator Set

1), Commercial Term,

Warranty:2 years.



Lifetime service.

2), General Specification of 20kw Ricardo Diesel Generator Set,

a, Engine and Alternator

Engine-Industrial 4 strokes cooled diesel engine complete with air, fuel and oil filters, electric starting and charging equipment, engine protection against oil low water level.

Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034. Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity. All standard voltages are available.

Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45℃,radiator suitable for higher temperature are available. Low water level protection fitted as standard.

Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.

3), Technical Data,

Generator ModelPrime Power OutputStandby PowerCummins Engine ModelStamford Alternator Model

Packing DataOpen TypeSilent Type

a), Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.-60HZ.

b), Prime Power: These Ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12hours

3), Standby Power: These ratings are applicable for supply continuous electrical power (at variable load) In the event ability power failure.

Engine Specification
Engine Model495D
Typewater-cooled direct injection
Rated Power26.5kw/36 hp
Air Intake typeTurbocharged
Cylinder number4
Piston Speed6m/s
Mechanical governor rate≤5%
Electronical Governor rate≤1%
Noise Level≤96 dBA
Exhaust Temperature540℃
Lube Oil capacity9L

Fuel Consumption
