50kva low noise Ricardo Diesel Generator set

Good quality Ricardo diesel engine for sales
Good quality Ricardo diesel engine for sales
I'm Online Chat Now

50kva low noise Ricardo Diesel Generator set

China 50kva low noise Ricardo Diesel Generator set supplier
50kva low noise Ricardo Diesel Generator set supplier 50kva low noise Ricardo Diesel Generator set supplier 50kva low noise Ricardo Diesel Generator set supplier

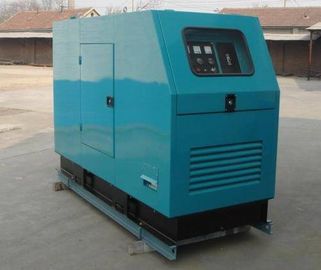

Large Image :  50kva low noise Ricardo Diesel Generator set

Product Details:

Place of Origin: China
Brand Name: Huaxin
Certification: CE
Model Number: HX-40GF

Payment & Shipping Terms:

Price: USD 2650
Packaging Details: Export plywood case
Delivery Time: In 7 days after receive the deposit
Payment Terms: T/T
Supply Ability: 500 units per month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

40kw/50kva Diesel Generator For Sale

1), Commercial Term,

Warranty:2 years.

Payment:TT.

Delivery:15days.

Lifetime service.

2), General Specification of 40kw/50kva Ricardo Diesel Generator,

a, Engine and Alternator

Engine-Industrial 4 strokes cooled diesel engine complete with air, fuel and oil filters, electric starting and charging equipment, engine protection against oil low water level.

Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034. Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity. All standard voltages are available.

Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45℃,radiator suitable for higher temperature are available. Low water level protection fitted as standard.

Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.

3), Technical Data,

Generator Model Prime Power Output Standby Power Cummins Engine Model Stamford Alternator Model
HTR40GF kw kva kw kva
40 50 44 55 K4102ZD UCI224D

Packing Data Open Type Silent Type
Dimension(mm) 1900×750×1450 2500*1150*1750

Weight(kg)

900

1560

a), Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.-60HZ.

b), Prime Power: These Ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12hours.

3), Standby Power: These ratings are applicable for supply continuous electrical power (at variable load) In the event ability power failure.

Engine Specification
Engine Model K4102ZD

Type water-cooled direct injection
Rated Power 44/60 hp
Air Intake type Turbocharged
Cylinder number 4
Bore*Stroke 102×115mm
Piston Speed 6m/s
Mechanical governor rate ≤5%
Electronical Governor rate ≤1%
Noise Level ≤96 dBA
Exhaust Temperature 540℃
Lube Oil capacity 9L

Fuel Consumption

11L/h
