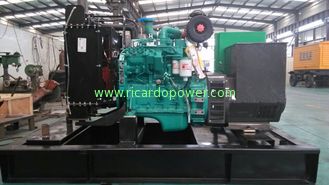

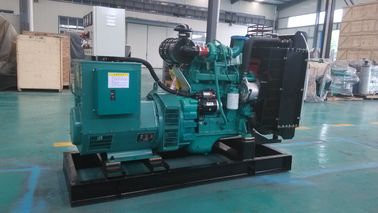

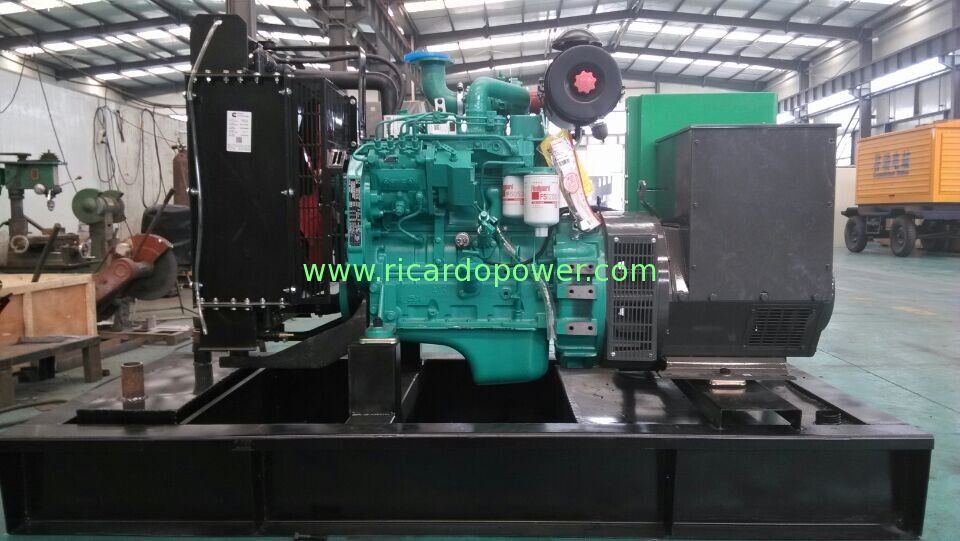

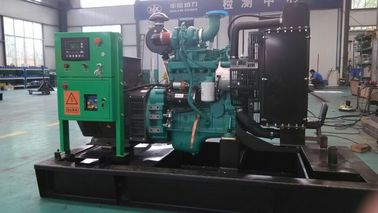

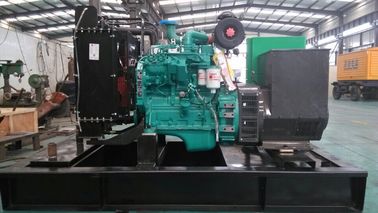

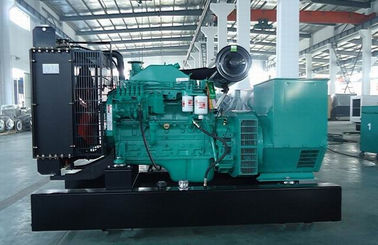

48kw/60kva Cummins Diesel Generator Set Price,
Standby Power(50HZ) 48KW/60KVA
Prime Power(50HZ) 52.8W/66KVA
Radiator 40°C max, fans are driven by belt ,with safety guard
12V charge alternator
Alternator (Stamford UCI224E), single bearing alternator IP23, insulation class H/H
Dry type air filter ,fuel filter ,oil filter, coolant filter
Main line circuit breaker
Standard control panel
One 12V batteries ,rack and cable
Ripple flex exhaust pipe ,exhaust siphone, flange,
voltage HZ phase P.F Standby/Prime
Amps Stand by
400/230 50 3 0.8 95/86.4 52.8/66 48/60
Prime power (PRP): Prime power is available for an unlimited number of annual hours in available load
application , in according with GB/T2820-97(EQVLso8528); A 10% overload capability is available for a period of 1hour within a 12-hour period of operation.
Standby power Rating (ESP) ; The standby power rating is application for supplying emergency power for the
duration of a utility power interruption .No overload ,utility parallel or negotiated outage operation capability is available at this rating.
Huatian provides a full line of brand new and high quality products .Each and every unit is strictly factory tested.
Warranty is according to our standard conditions: 12 months or 1000 running hour`s, subject to the earlier one.
Service and parts are available from our factory or distribution in your location.
GENERATING SET DATA
Voltage Regulation: ≥±5%
Voltage Regulation, Stead State: ≤±1%
Sudden Voltage Warp (100% Sudden Reduce) : ≤+25%
Sudden Voltage Warp (sudden Increase): ≤-20%
Voltage Stable Time (100% sudden Reduce): ≤6s
Voltage Stable Time (Sudden Increase): ≤6s
Frequency Reduce: ≤5% adjustable
Frequency Regulation, Stead State: ≤1.5%
Frequency waving: ≤0.8 % ≤+12%
Sudden Frequency Warp (100% Sudden Reduce) : ≤+12%
Sudden Frequency Warp (Sudden Increase): ≤-10%
Frequency Recovery Time (100% sudden Reduce): ≤5s
Frequency Recovery Time (Sudden Increase): ≤5s
Engine Fuel System Control System
Heater Daily Fuel Tank Auto Control Panel
Battery Base Fuel Tank Remote Control Panel
Water Separator Auto Transfer Switch (ATS)
Electricity Output Cabinet
