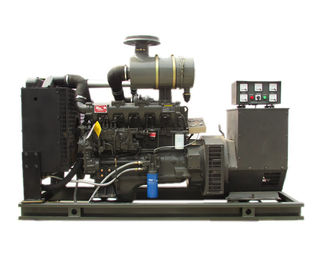

100KW /125kva Ricardo Diesel Generator set

China 100KW /125kva Ricardo Diesel Generator set supplier
100KW /125kva Ricardo Diesel Generator set supplier 100KW /125kva Ricardo Diesel Generator set supplier 100KW /125kva Ricardo Diesel Generator set supplier

Large Image :  100KW /125kva Ricardo Diesel Generator set

Product Details:

Place of Origin: China
Brand Name: Huaxin
Certification: CE
Model Number: HX-120GF

Payment & Shipping Terms:

Price: USD 4500
Packaging Details: Export plywood case
Delivery Time: In 7 days after receive the deposit
Payment Terms: T/T
Supply Ability: 500 units per month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

Ricardo 150kva Diesel Generator Price

1), Commercial Term,

Warranty:2 years.



Lifetime service.

2), General Specification of 150kva Ricardo Diesel Generator,

a, Engine and Alternator

Engine-Industrial 4 strokes cooled diesel engine complete with air, fuel and oil filters, electric starting and charging equipment, engine protection against oil low water level.

Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034. Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity. All standard voltages are available.

Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45℃,radiator suitable for higher temperature are available. Low water level protection fitted as standard.

Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.

3), Technical Data,

Generator Model Prime Power Output Standby Power Cummins Engine Model Stamford Alternator Model
HTR120GF kw kva kw kva
120 150 132 165 R6105iZlD UCI274G

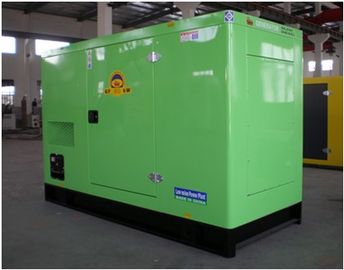

Packing Data Open Type Silent Type
Dimension(mm) 2600×780×1600 3500*1200*2000




a), Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.-60HZ.

b), Prime Power: These Ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12hours.

3), Standby Power: These ratings are applicable for supply continuous electrical power (at variable load) In the event ability power failure.

Engine Specification
Engine Model R6105IZLD
Type water-cooled direct injection
Rated Power 132kw/180 hp
Air Intake type Turbocharged
Cylinder number 6
Bore*Stroke 105×130mm
Piston Speed 6m/s
Mechanical governor rate ≤5%
Electronical Governor rate ≤1%
Noise Level ≤96 dBA
Exhaust Temperature 540℃
Lube Oil capacity 12L

Fuel Consumption
