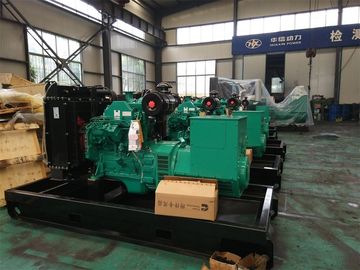

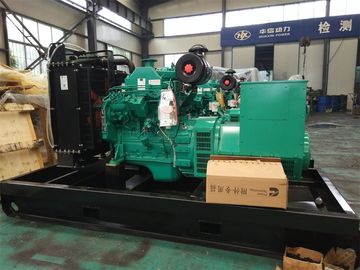

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green
32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green

Large Image :  32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green

Product Details:
Place of Origin: China
Brand Name: Huaxin
Certification: CE
Model Number: HX-24GF
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Export plywood
Delivery Time: In 7 days after receive the deposit
Payment Terms: T/T
Supply Ability: 500 units per month
Minimum Order Quantity: 1
Detailed Product Description
Standby Power: 32KW Current: 57.6
Voltage: 230/400 127/220 Frequency: 50 / 60

We privides a full line of new brand and high quality Cummins diesel generator. Diesel Generator powered by Weichai, Cummins, Perkins, Deutz, Lovol, Yuchai or Ricardo engine. Cummins powered electric diesel generator set with reliable performance and high technology. Each and every equipement is strictly tested before delivery .



gensets model(electric dynamo generator) HX-32GF
Engine 4BT3.9-G2
Power 45kva/36kw
Rated Voltage 400/230V
Rated frequency(HZ) 50HZ
Rated Speed 1500rpm
Power Factor(COS) 0.8(lagging)
Dimensions of open type(mm) (L×W×H) 1800*800*1600
Dimensions of sient type(mm) (L×W×H) 2400*1000*1850
Gross weight of open type (kg) 800
Gross weight of silent type(kg) 950
Model Prime Power(KW) Standby Power(KW) Current(A) Engine Model Displacement (L) Fuel Consumption(g/kw.h) Size(L*W*H)mm Weight (Kg)
HX-20GF 20 22 36 4B3.9-G2 3.9 209 1600×650×1200 500
HX-24GF 24 26.4 43.2 4B3.9-G2 3.9 209 1700×700×1320 550
HX-30GF 26 30 54 4BT3.9-G2 3.9 209 1700×700×1320 580
HX-40GF 40 44 80 4BTA3.9-G2 3.9 209 1700×750×1500 720
HX-50GF 40 50 90 4BTA3.9-G2 3.9 209 1700×750×1500 750
HX-75GF 64 75 135 6BT5.9-G2 5.9 209 2200×850×1600 1050
HX-100GF 100 110 200 6BTA5.9-G2 5.9 209 2200×850×1600 1200
HX-120GF 120 130 234 6BTAA5.9-G2 5.9 209 2300×900×1700 1300
HX-150GF 130 150 270 6CTA8.3-G2 8.3 206 2500×1000×1700 1400
HX-180GF 160 180 324 6CTAA8.3-G2 8.3 206 2700×1000×1900 1500
HX-200GF 180 200 360 6LTAA8.9-G2 8.9 206 2700×1000×1900 1600

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 0

Silent canopy

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 1

Controller

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 2

Package

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 3

Spare parts optional

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 4

Installation draft

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 5

Cooperator and certificate

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 6

32KW/40kva Cummins Diesel Generator Set powered by 4BT3.9-G2 color green 7
